Project Overview
Client: A Leading Global Petrochemical Enterprise
Application: Catalyst debris removal from reactor outlet gas in a hydrogen-rich process stream.
Key Challenge: Cracking of previous filter elements and poor permeability recovery after cleaning.
Solution: CMI Customized High-Strength Sintered Metal Filter Elements.
The Challenge: Extreme Conditions & Mechanical Failure
Reactor outlet gas filtration is one of the most demanding applications in petrochemical processing. Operating under high-pressure hydrogen service, the system must continuously remove abrasive catalyst powder and solid debris while maintaining stable flow conditions.
The client’s previous filter elements suffered repeated failures under severe operating conditions including elevated temperature, pressure fluctuation, and frequent cleaning cycles.

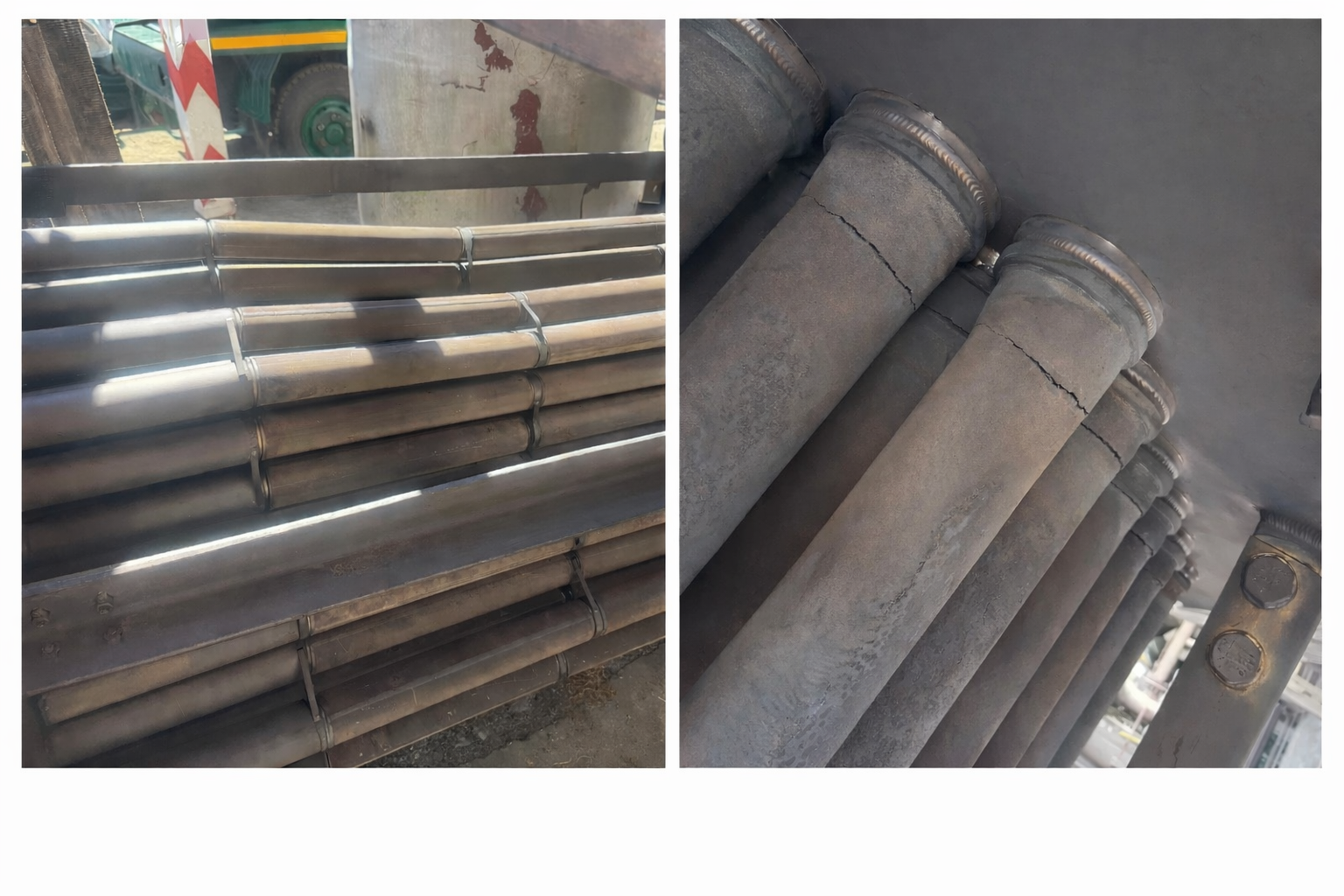

- Structural Failure: Frequent cracking caused by thermal stress and mechanical fatigue.
- Poor Cleanability: Back-pulse cleaning could not restore original permeability effectively.
- Short Service Life: Frequent replacement increased shutdown risk and maintenance cost.
- Process Instability: Rising pressure drop affected stable reactor operation.
The CMI Solution: Engineering for Resilience
CMI engineers reviewed the operating data including 385°C process temperature and 17.0 barg pressure conditions, then developed a customized sintered metal filtration solution for long-term reliability.
- Crack-Resistant Structure: Advanced sintering process with reinforced welded construction for high differential pressure resistance.
- Optimized Pore Distribution: Designed for efficient retention of catalyst debris with mean particle size around 32 μm while maintaining high gas throughput.
- Superior Cleanability: Surface-loading filtration design enables effective back-cleaning and permeability recovery close to original levels.
- Stable High Flow Performance: Suitable for volumetric gas flow up to 18,075 m³/hr.
Results & Business Impact
Following installation of the CMI elements, the plant achieved measurable improvements in equipment reliability and process continuity.
- Extended Service Life: Significantly longer runtime with no cracking incidents reported.
- Operational Stability: Stable pressure drop supported uninterrupted catalytic reactor performance.
- Lower Maintenance Cost: Reduced replacement frequency and maintenance labor requirement.
- High ROI: Improved uptime and lower total ownership cost for the plant.
Conclusion
This project demonstrates CMI Filtration’s ability to solve critical filtration challenges in severe petrochemical gas service.
Through engineered sintered metal technology, we helped the client achieve longer element life, stronger process stability, and lower operating cost in a demanding hydrogen environment.
