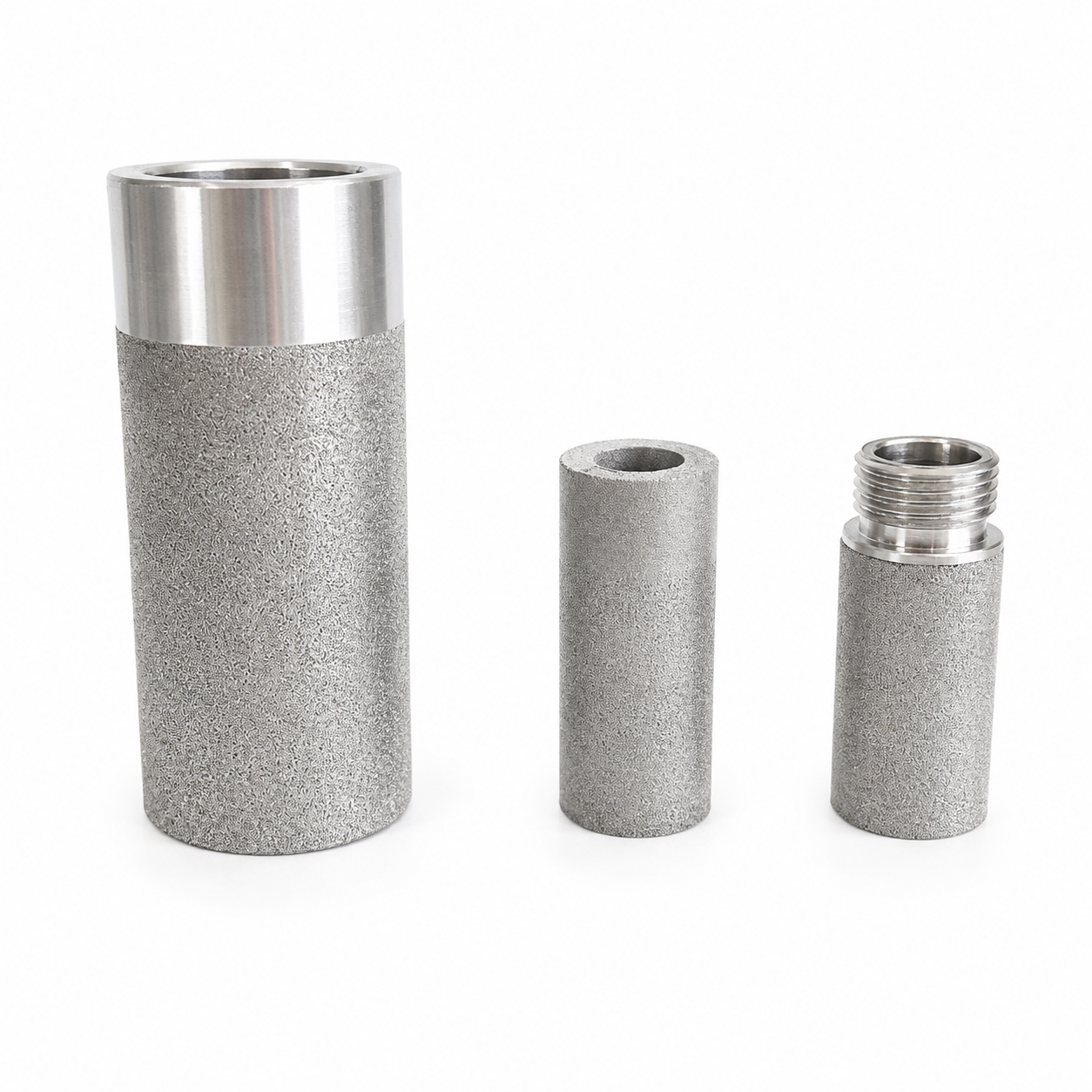

CMI sintered porous metal flame arrestor element for gas flashback protection and explosion proof systems

Sintered Metal Flame Arrestors

High-performance sintered metal flame arrestors engineered for industrial gas systems and explosion-proof equipment. Leveraging uniform porous media technology and thermodynamic quenching, CMI elements provide reliable flashback protection, exceptional mechanical strength under detonation waves, and precise pore size control (0.5–20 μm) to match specific gas MESG requirements.

Category:

Sintered Metal Flame Arrestors for Industrial Gas Safety Systems

CMI Sintered Metal Flame Arrestors combine high-efficiency filtration performance with reliable flame-quenching protection for industrial gas systems handling flammable or explosive gases.

Utilizing a precisely engineered porous metal structure, these elements rapidly absorb and dissipate flame energy during flashback events, preventing flame propagation through pipelines, gas cabinets, analyzers, and pressure regulation systems.

Manufactured from high-strength sintered stainless steel and specialty alloys, CMI flame arrestors provide excellent thermal stability, mechanical integrity, and long-term reliability under demanding industrial operating conditions.

Customized pore structures and connection configurations are available to match specific gas compositions, operating pressures, flow rates, and explosion-group safety requirements.

Core Flame Arresting Mechanism

Instantaneous Heat Absorption

The interconnected porous structure rapidly absorbs and dissipates flame energy, reducing gas temperature below the ignition threshold within microseconds.

Critical Pore Size Control

Precisely controlled pore structures are engineered smaller than the Maximum Experimental Safe Gap (MESG) of specific gas mixtures, physically blocking flame penetration.

Dual Filtration & Safety Function

During normal operation, the element functions as a precision gas filter while instantly acting as a safety barrier during flashback conditions.

Low Pressure Drop

Optimized porous structures maintain stable process flow with minimal system resistance while ensuring effective flame arresting capability.

Typical Application Scenarios

Welding & Cutting Equipment

Prevents flame flashback into acetylene, propane, hydrogen, or oxygen supply systems used in welding and cutting operations.

Semiconductor Gas Cabinets

Installed in gas cabinets and valve manifold boxes handling hazardous specialty gases such as silane and phosphine.

Gas Analyzer Systems

Protects analytical instruments and prevents flame propagation back into sampling systems in hazardous process environments.

Explosion-Proof Enclosures

Functions as a breather vent while preventing flame transmission from electrical enclosures into surrounding hazardous atmospheres.

Pressure Regulators

Installed in natural gas, hydrogen, and oxygen pressure regulation systems to prevent ignition caused by static discharge or frictional heating.

Technical Advantages

✔ High-temperature resistance up to 400–600°C and beyond depending on alloy
✔ Excellent thermal conductivity for rapid flame quenching
✔ Uniform pore structure with precise MESG matching capability
✔ High mechanical strength against detonation shock waves
✔ Superior corrosion resistance for aggressive industrial gases
✔ No pore deformation or rupture under flashback impact
✔ Available in 316L, Hastelloy, Monel, Titanium, and specialty alloys
✔ OEM integration with threaded, flange, and press-fit assemblies

Custom Engineering Options

CMI flame arrestors can be customized with precision pore sizes ranging from 0.5 μm to 20 μm to match the safety requirements of specific gases including hydrogen, acetylene, and other IIC explosion-group gases.

Multiple integration options are available including threaded fittings, welded assemblies, flange-mounted structures, and OEM press-fit configurations for industrial gas handling equipment.

Frequently Asked Questions (FAQ)

How do CMI sintered elements achieve flame arresting and gas filtration simultaneously?

Under normal operating conditions, the highly controlled porous matrix acts as a high-precision filter with low pressure drop. In the event of a flashback, the large specific surface area and high thermal conductivity of the sintered metal rapidly absorb flame energy, instantly reducing the gas temperature below the ignition point to safely quench the flame.

Can CMI customize flame arrestor elements for Group IIC gases like Hydrogen and Acetylene?

Yes. CMI precisely controls the Maximum Bubble Point Pore Size through advanced powder metallurgy technology to ensure the porous structure remains smaller than the Maximum Experimental Safe Gap (MESG) of hazardous gases, providing a reliable physical barrier against flame propagation.

Looking for Customized Flame Arrestor Solutions?

CMI provides engineered porous metal flame arrestors for gas safety systems, hazardous process environments, analyzer protection, and OEM industrial gas equipment.

📩 Technical Support: sales@cmifiltration.com
