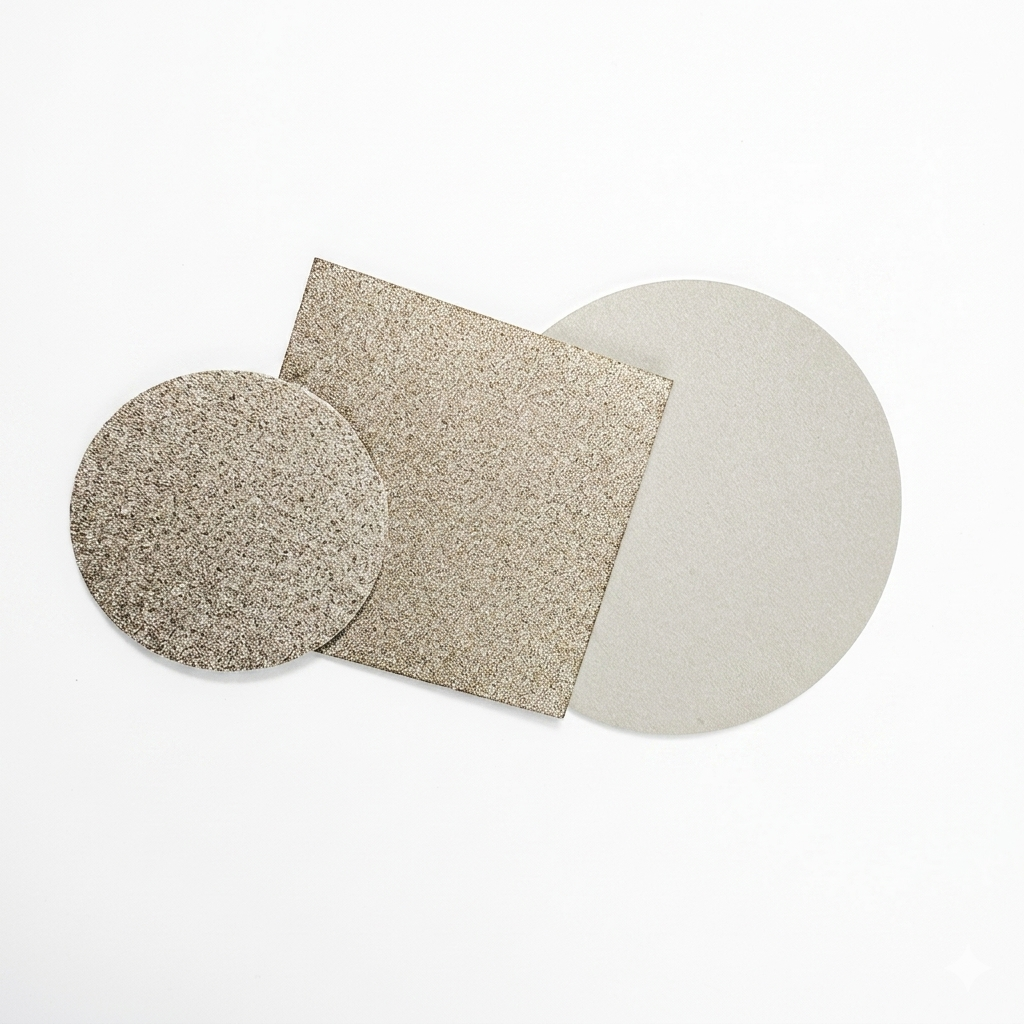

CMI sintered porous titanium gas diffusion layer sheet for PEM electrolyzer anode stacks

Porous Metal Gas Diffusion Layers

High-precision porous metal GDLs (Gas Diffusion Layers) engineered for PEM fuel cells and electrolyzers. Available in Titanium and 316L Stainless Steel with customized 16%–40% porosity. Delivers superior mechanical strength, zero-creep under stack compression, and optimized water management compared to carbon paper.

Category:

High-Performance Porous Metal Gas Diffusion Layers for Fuel Cells & Electrolyzers

CMI Porous Metal Gas Diffusion Layers (GDLs) are engineered for high-performance PEM fuel cells, electrolyzers, and advanced electrochemical systems.

Manufactured through precision powder metallurgy technology, these porous metallic diffusion layers provide highly controlled and interconnected pore structures for uniform reactant distribution, optimized water management, and excellent electrical conductivity.

Compared to conventional carbon paper or carbon cloth diffusion media, CMI metallic GDLs offer significantly higher mechanical strength, improved dimensional stability, and zero thickness creep under high stack compression conditions.

These materials are especially suitable for high-pressure hydrogen systems, PEM electrolyzers, fuel cell stacks, and next-generation clean energy applications requiring long-term electrochemical stability.

Core Technical Advantages

Mechanical & Dimensional Stability

Maintains stable permeability and consistent thickness (typically ±0.025 mm) under heavy compressive loading in multi-cell stack assemblies.

Optimized Water Management

Engineered pore structures balance gas diffusion and liquid water transport, reducing flooding in fuel cells and improving gas release in electrolyzers.

Superior Corrosion Resistance

Available in Titanium and 316L stainless steel for aggressive acidic or alkaline electrochemical environments with minimal contamination risk.

Surface & Catalyst Compatibility

Compatible with hydrophobic/hydrophilic surface treatments, conductive Au/Pt plating, and direct catalyst coating technologies.

Technical Specifications

Available Materials Titanium (Gr.1 / Gr.2 for PEMWE), 316L Stainless Steel, and noble metal alloys
Porosity Range 16% – 40% open porosity with precisely controlled pore distribution
Thickness Tolerance Typically ±0.025 mm (±0.001")
Surface Treatments Catalyst coatings (Pt / Ir), conductive plating (Au / Pt), and custom surface modifications
Form Factors Ultra-thin sheets, porous plates, patterned flow-field structures, and OEM geometries

Typical Applications

  • PEM Electrolyzers (PEMWE): High-pressure anode and cathode gas-liquid diffusion layers
  • PEM Fuel Cells (PEMFC): Heavy-duty transportation and stationary fuel cell stacks
  • Solid Oxide Fuel Cells (SOFC): High-temperature electrochemical systems and metallic interconnect matching
  • Hydrogen Energy Systems: Water electrolysis, hydrogen generators, and advanced clean energy applications

Accelerate Your Hydrogen Stack Development

CMI supports fuel cell integrators and green hydrogen developers with customized porosity, ultra-thin configurations, and engineered metallic gas diffusion layer solutions.

📩 Technical Consultation: sales@cmifiltration.com
