High-Efficiency Industrial Steam Filters

CMI Industrial Steam Filters are premium sintered metal elements designed for extreme conditions. Featuring a porosity level >50%, these filters offer exceptional flow rates and are fully regenerable via ultrasonic cleaning. Perfectly compatible with standard steam systems, they ensure the highest steam purity and process efficiency.

Category:
Regenerable Sintered Metal Solutions for Optimized Steam Quality:

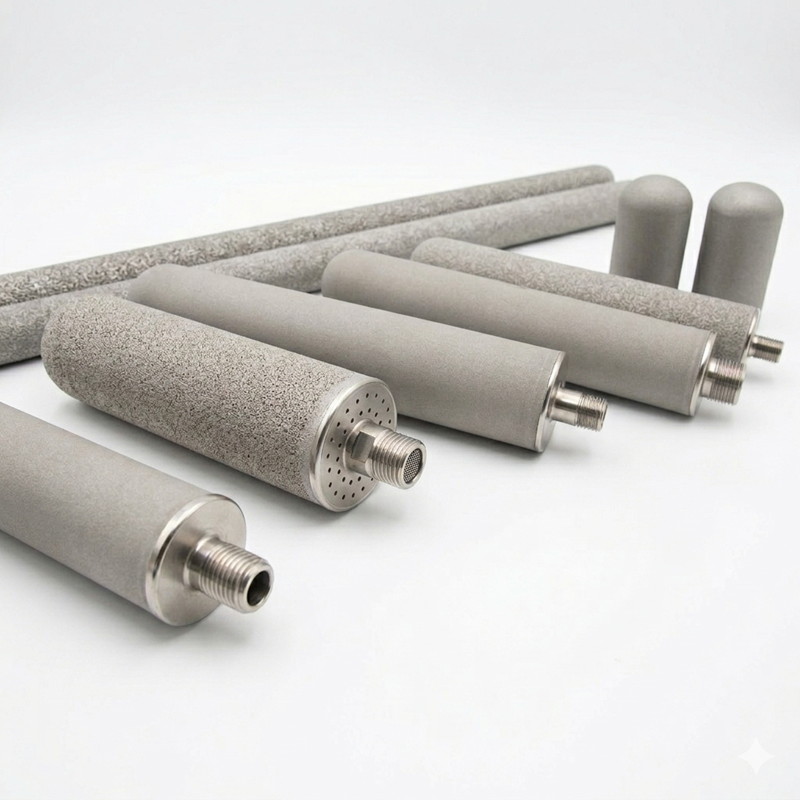

CMI Industrial Steam Filters are engineered through a precision cold isostatic pressing and sintering process, resulting in a robust, weldless stainless steel filter media. Designed to withstand the rigorous demands of industrial steam systems, these filters effectively remove contaminants such as rust, scale, and valve abrasion particles.

By delivering cleaner steam, CMI filters protect downstream equipment, extend the service life of sterilized components, and enhance overall process efficiency.

Key Technical Features

Superior Porosity: Exceeding 50% porosity for high dirt-holding capacity and exceptional flow rates.
Economic Sustainability: Fully regenerable via ultrasonic cleaning or back-flushing, ideal for high-particle loads.
Pure Construction: Fabricated without binders or adhesives—zero additive migration.
Extreme Durability: Supports max ΔP of 5 bar and operates up to 210°C.

Specifications & Interchangeability (P-GS VE)

CMI elements are designed to perfectly match P-GS VE dimensions for hassle-free installation in existing housings.

Model Similar Code Material OD (mm) Length (mm) Connection
04/2010/20SS316L50.8101.6UF Plug-In
05/2510/25SS316L55142UF Plug-In
07/3010/30SS316L77196UF Plug-In
10/3010/30SS316L77270UF Plug-In
15/3010/30SS316L77397UF Plug-In
20/3010/30SS316L77524UF Plug-In
30/3010/30SS316L77778UF Plug-In
30/5010/50SS316L131778UF Plug-In

Technical Data Reference:

  • Micron Ratings: 0.5 μm to 25 μm.
  • Operating Temperature: -50°C to 210°C.
  • Max ΔP: 5 bar (75 psid).
  • Filtration Surface: 0.05 m² per 250 mm element (Reference 10/30).

Reliable Protection for Critical Systems

  • Process Steam: Removal of abrasive particles to protect high-precision valves and seals.
  • Sterilization Systems: Pre-filtration for culinary steam and filter sterilization.
  • Compressed Air: High-efficiency particle removal in aggressive air lines.

Why Choose CMI?

With 20+ years of expertise, CMI provides seamless replacement elements that reduce the Total Cost of Ownership (TCO). Our regenerable media ensures long-term reliability and environmental sustainability.

Ready to Upgrade Your Steam Filtration?

Consult our team to find the exact match or custom-engineer a solution.

📩 Sales & Technical Support: sales@cmifiltration.com
