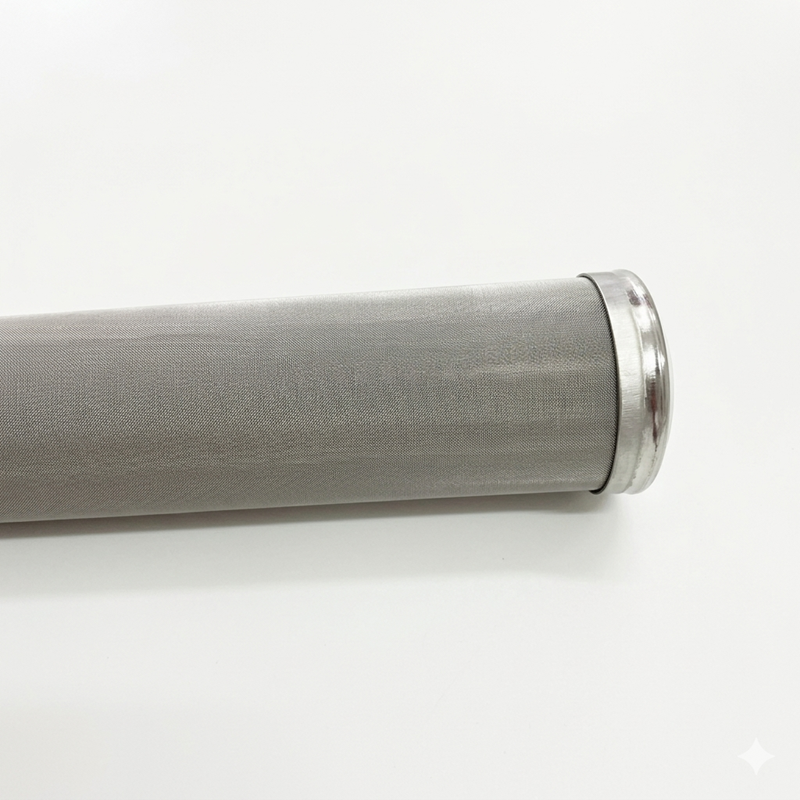

5-Layer Stainless Steel Sintered Metal Mesh Filter Cartridge and Disc for Industrial Filtration

Sintered Metal Mesh Filter

CMI Sintered Metal Mesh Filters are engineered by bonding multiple layers of woven wire mesh through high-temperature vacuum sintering to create a rigid, porous laminate. This unique structure provides a permanent, stable pore size that will not deform even under extreme pressure or high-viscosity loads.

Standardly available in 5-layer laminates (with 6 or 7 layers for specialized needs), these filters offer a precise filtration range of 2 to 200 μm. Fabricated from 316L or 304 stainless steel, they combine excellent corrosion resistance with high mechanical strength, making them far superior to standard wire cloth. CMI mesh filters are fully cleanable, weldable, and can be customized into cartridges, discs, cones, or cylinders, providing a long-life solution for chemical fiber filtration, catalyst support, and high-temperature transpiration cooling.

Category:
High-Strength Multi-Layer Filtration for Demanding Industrial Conditions
CMI sintered metal mesh filters are manufactured by bonding multiple layers of woven metal mesh through high-temperature vacuum sintering, forming a rigid and porous laminate structure.

This structure combines precise filtration performance with excellent mechanical strength and dimensional stability. By selecting different mesh sizes, wire diameters, weaving patterns, and layer configurations, the pore structure, permeability, and strength can be precisely controlled.

Standard configurations typically include 5-layer sintered mesh laminates, while 6-layer or 7-layer structures are available for higher strength or finer filtration requirements.

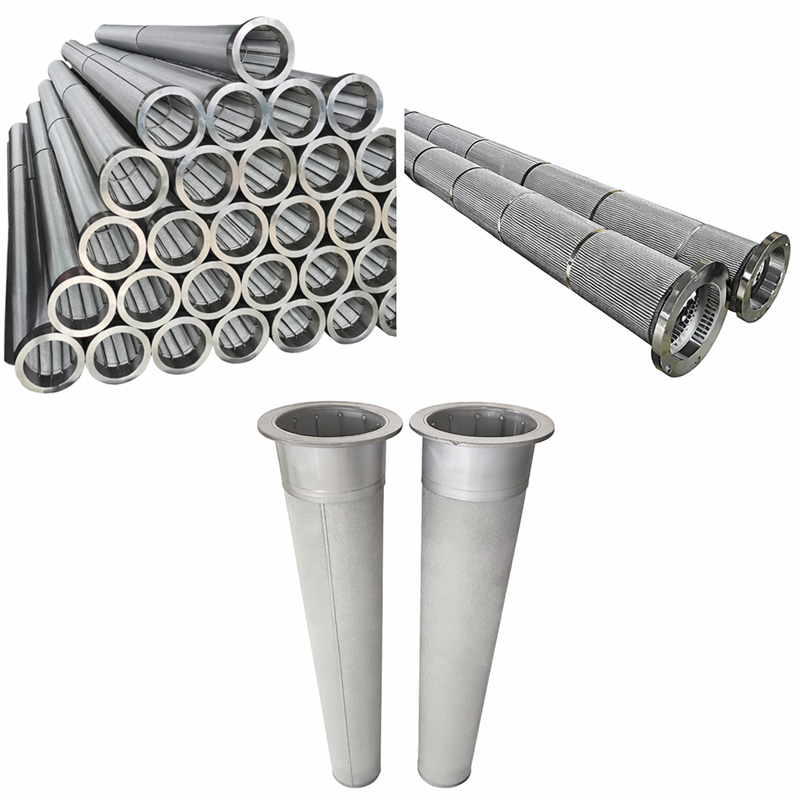

Sintered mesh materials can be fabricated into cartridges as well as discs, cones, cylinders, and other customized geometries.

Key Features & Benefits

High mechanical strength and excellent pressure resistance
Stable pore structure with no deformation under load
High permeability with low pressure drop
Excellent corrosion and high temperature resistance
All-metal construction with long service life
Suitable for welding, cutting, forming, and machining
Reliable performance in high-viscosity and high-pressure systems

Technical Specifications

Shapes Sheets, plates, discs, tubes, cylinders, and cones
Cartridge Diameter 20 – 1000 mm
Filtration Rating 2 – 200 μm
Structure Multi-layer sintered mesh laminate, typically 5–7 layers

Available Materials

Stainless Steel SS316L, SS304
Optional Alloys Available upon request for corrosive or high-temperature applications

Typical Applications

  • Liquid and gas purification
  • Solid particle separation and recovery
  • High-temperature transpiration cooling systems
  • Noise reduction and silencing equipment
  • Fluidized bed applications
  • Chemical fiber filtration
  • Catalyst support and chemical processing

Need a High-Strength Sintered Metal Mesh Filter?

Contact CMI for mesh structure selection, filtration rating recommendations, and custom-engineered filtration solutions.
