Industrial Multi-tube Sintered Metal Filter Assembly for High-flow Liquid and Gas Filtration

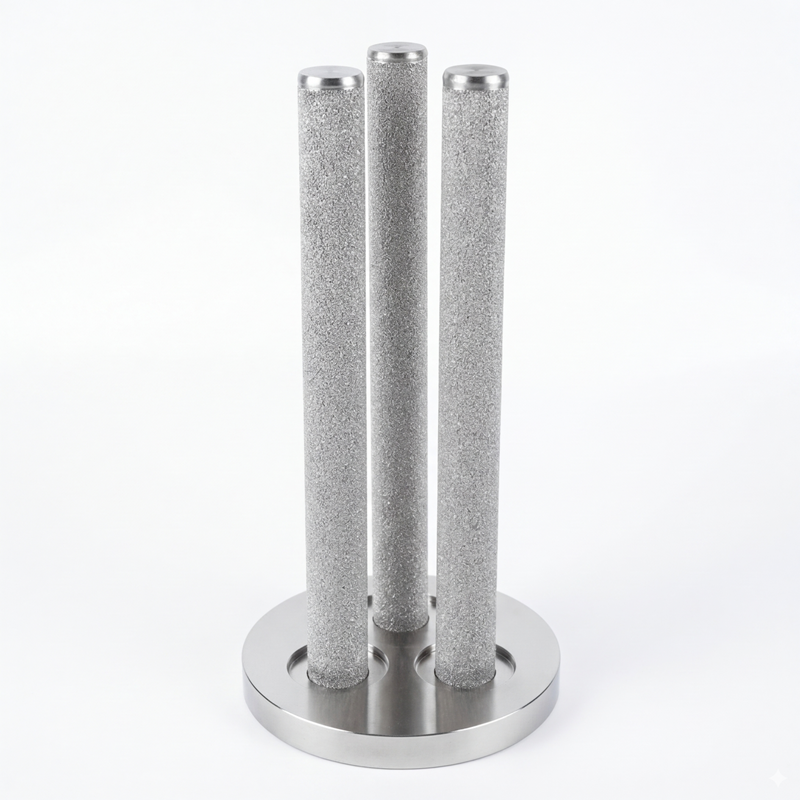

Multi-Tube Sintered Metal Filter Assembly

CMI Multi-Tube Sintered Metal Filter Assembly is designed for high-capacity industrial filtration where large flow rates, mechanical strength, and stable filtration performance are required.

By integrating multiple sintered metal tubes into a single housing or manifold, the assembly increases effective filtration area while keeping the overall footprint compact.

Manufactured from 316L stainless steel or selected corrosion-resistant alloys, it offers strong resistance to high temperature, high pressure, and aggressive process fluids. It is suitable for continuous operation in chemical processing, oil & gas, power generation, and large-scale water treatment applications.

Category:
High-Flow Sintered Filter Module for High-Temperature Industrial Filtration
CMI multi-tube sintered metal filter assemblies integrate multiple sintered powder filter tubes into a rigid welded structure, providing large filtration area, high flow capacity, and reliable mechanical strength for demanding industrial systems.

Compared with single-tube elements, multi-tube assemblies provide higher throughput, lower pressure drop, and improved cleaning efficiency, making them ideal for continuous industrial filtration processes.

Key Features & Benefits

High temperature resistance for harsh thermal environments
Large filtration area through clustered tube design
Robust welded structure with high mechanical strength
Excellent corrosion and thermal shock resistance
Stable pore structure for consistent filtration
Compatible with back-pulse and ultrasonic cleaning
Modular structure for easy installation and maintenance
Custom tube quantity and configuration available

Technical Specifications

Filter Media Sintered metal powder
Tube Quantity Typically 3, 7, or customized configurations
Tube Diameter 20 – 80 mm
Assembly Length 200 – 2000 mm, customizable
Filtration Rating 0.2 – 100 μm
Operating Temperature Up to 400 – 600°C depending on material
Connections Threaded, flange-mounted, or welded base plate
Cleaning Methods Back-pulse, chemical cleaning, solvent cleaning

Available Materials

Stainless Steel 304, 316L
High-Temperature Alloys 310S, Inconel 600 / 625
Corrosion-Resistant Alloys Hastelloy C-22, C-276
Titanium Alloys Titanium and titanium alloys
Nickel-Based Alloys Monel and nickel-based alloys

Material selection can be optimized according to operating temperature, corrosion conditions, and process compatibility.

Typical Configurations

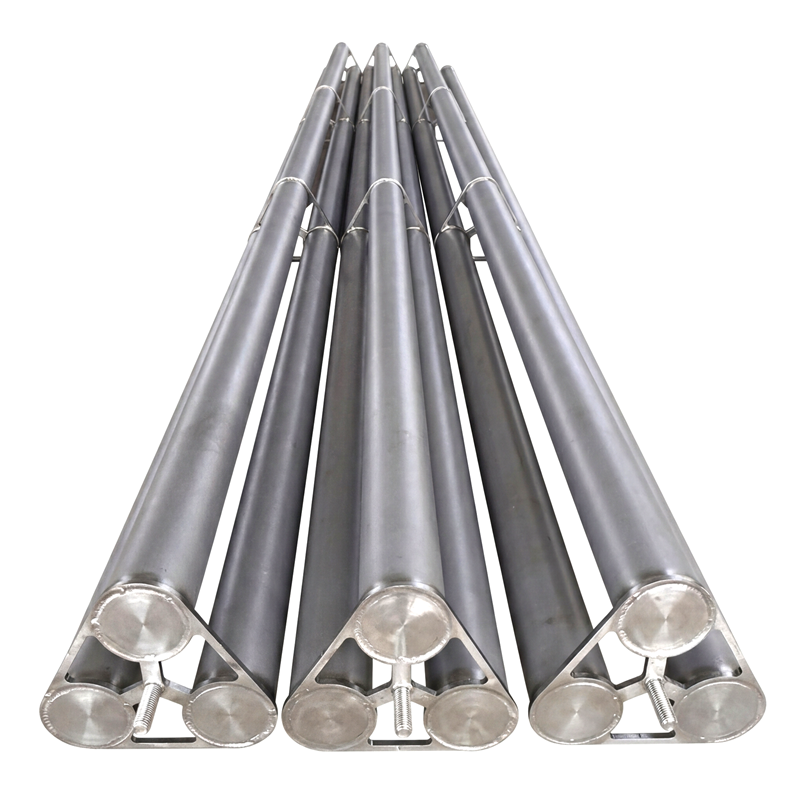

  • Triangular 3-tube assembly for compact systems
  • Circular multi-tube assemblies for higher filtration area
  • Modular frames for large-scale filtration systems
  • Vertical or horizontal configurations available

Typical Applications

  • High-temperature gas filtration
  • Catalyst recovery and process protection
  • Chemical and petrochemical process filtration
  • Hydrogen, nitrogen, and process gas purification
  • FCC, reforming, and cracking unit protection
  • Powder recovery and high-flow dust removal
  • Hot liquid and molten media filtration
  • Polymer and high-viscosity liquid filtration

These assemblies are particularly suitable for continuous high-temperature operations, aggressive chemical environments, and systems requiring stable long-term performance with minimal maintenance.

Need a Custom Multi-Tube Sintered Filter Assembly?

Contact CMI for material selection, tube configuration, and engineered filtration solutions.

📩 Sales & Technical Support: sales@cmifiltration.com

Related Products

Sintered Metal Spargers for Bioreactor Aeration and Industrial Ozone Mass Transfer

Sintered Metal Spargers

View Products
Sintered Metal Mesh Dust Filter Cartridge for High-Temperature Flue Gas and Powder Recovery

Sintered Metal Mesh Dust Filter

View Products
High-Efficiency Industrial Steam Filters

High-Efficiency Industrial Steam Filters

View Products
Sintered Titanium Powder Filter Cartridge for Pharmaceutical Filtration

Sintered Titanium Powder Filter Cartridges

View Products

Applications

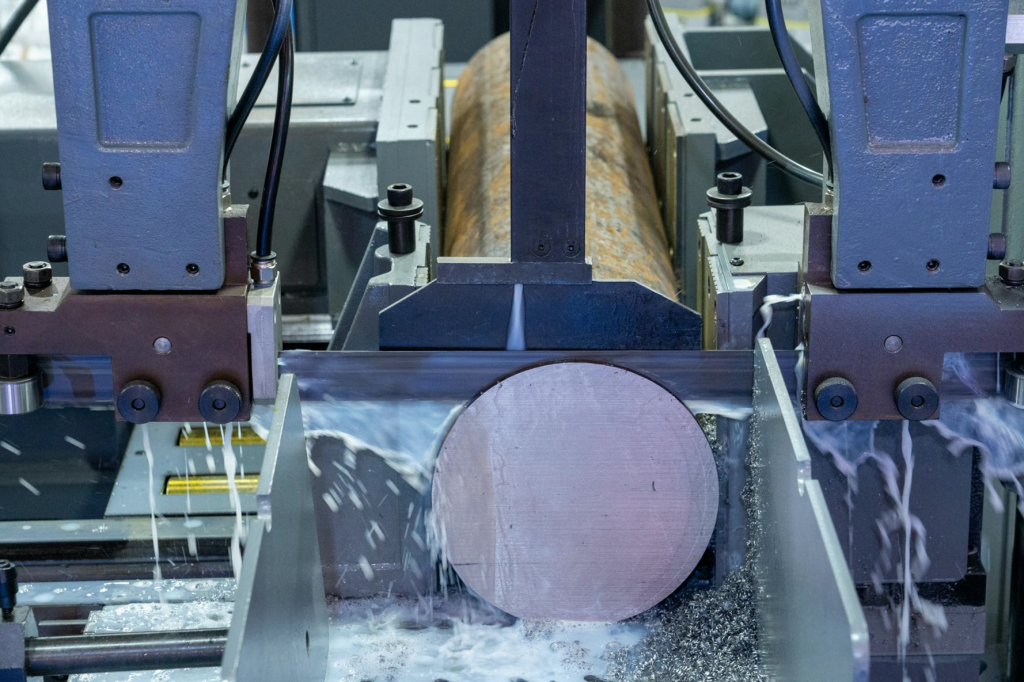

Cutting Fluids Filtration

Filtration solutions for metalworking fluids and cutting fluids, enabling contaminant removal, improved machining performance, and extended fluid service life in…

Learn more

LCD Cleaning Filtration

Filtration solutions for LCD cleaning processes, ensuring removal of particles and contaminants from cleaning liquids and high-purity water systems to…

Learn more

Filtration Solutions for Energy Storage & Battery Manufacturing

Filtration in battery manufacturing ensures slurry consistency, electrolyte purity, and product safety. CMI sintered metal filters provide high-precision, chemically stable…

Learn more

Filtration in Renewable Energy: Wind & Solar Power

Filtration in wind and solar energy ensures reliable operation in harsh environments such as offshore and desert installations. CMI sintered…

Learn more

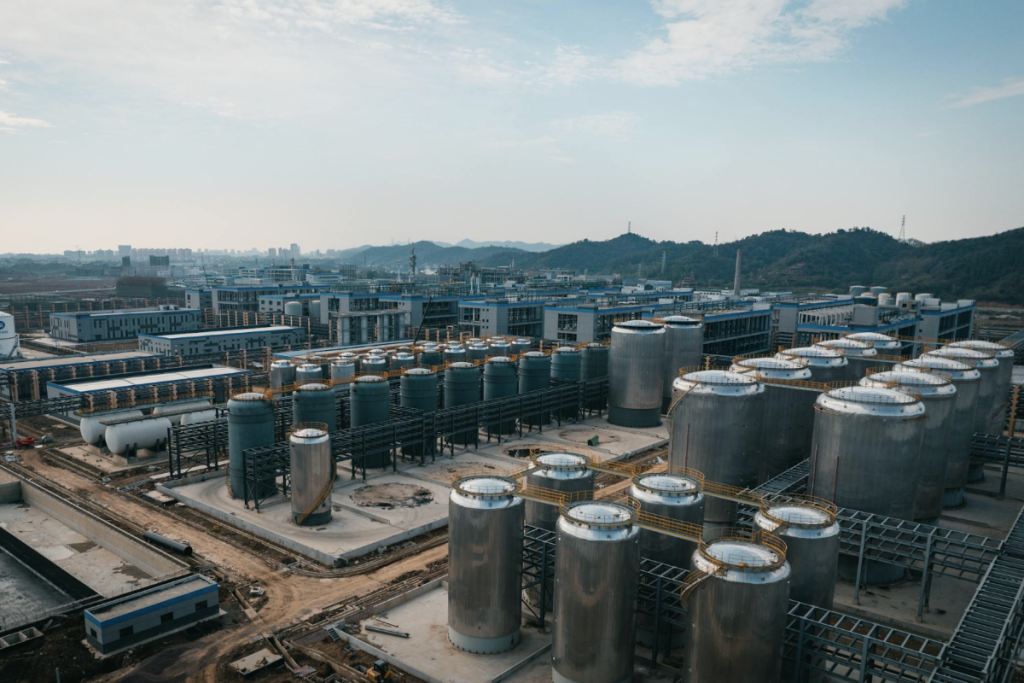

Filtration Solutions for the Hydrogen Economy

Filtration is critical across hydrogen production, storage, and fuel cell systems. CMI sintered metal filters provide high-pressure resistance, material stability,…

Learn more

Inlet Gas Separation

Inlet gas filtration solutions for natural gas processing, ensuring removal of solids and protection of downstream dehydration and sweetening systems.

Learn more

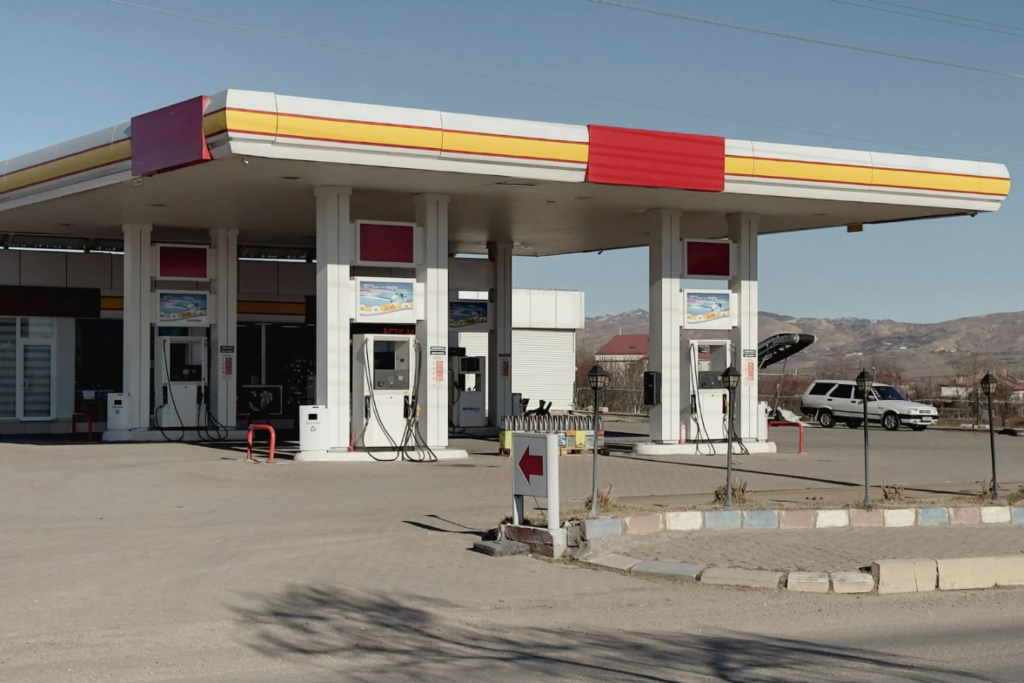

Fuel Gas & Instrument Gas Filtration

Filtration solutions for fuel gas and instrument gas systems, ensuring clean gas supply, equipment protection, and reliable operation in oil…

Learn more

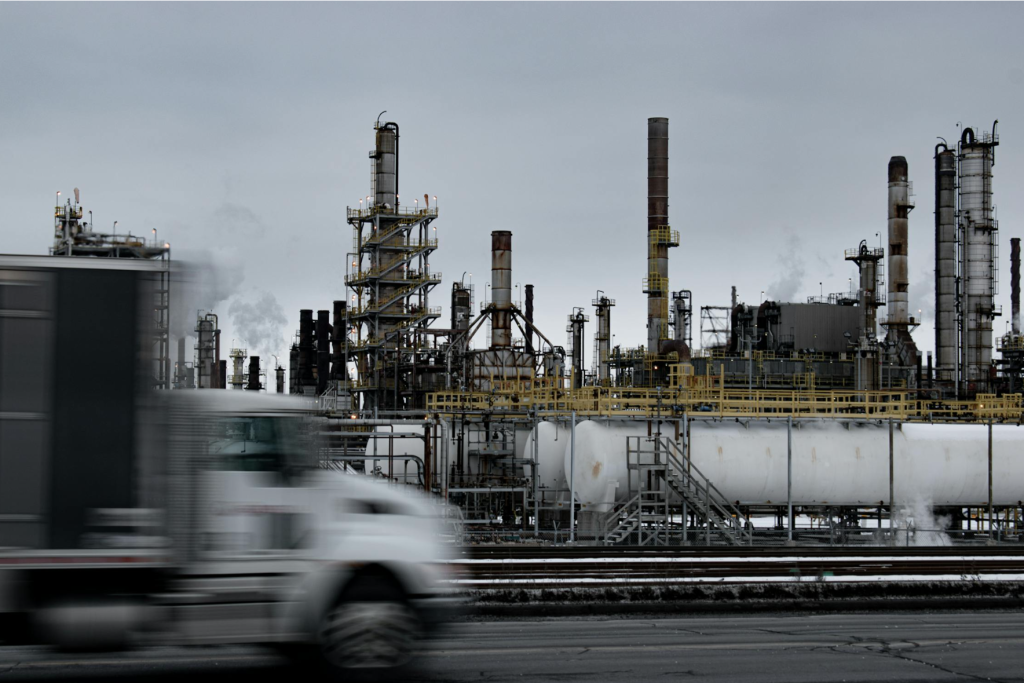

Natural Gas Dehydration Filtration
