Porous Metal Cups

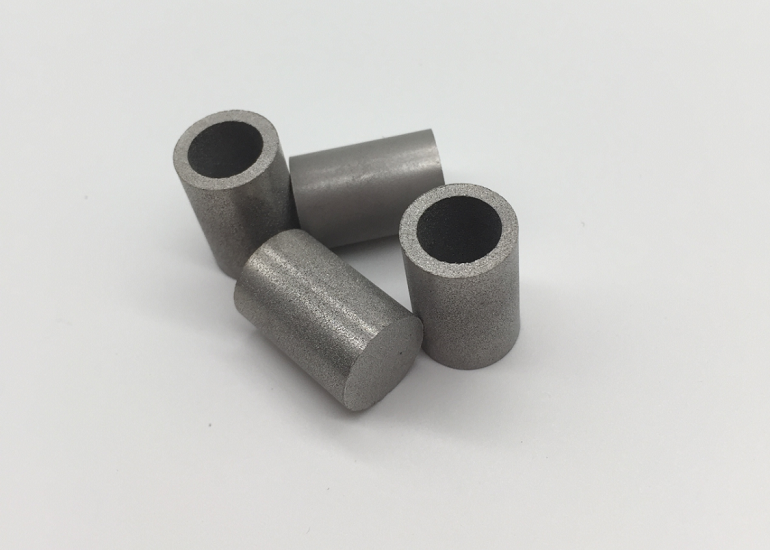

CMI Porous Metal Cups are high-performance filtration and flow control components manufactured using advanced powder sintering technologies. These cups feature a controlled and uniform pore size distribution, ensuring predictable filtration performance and consistent flow distribution across various media.
Engineered for durability, these components offer high mechanical strength and excellent corrosion resistance, even under extreme pressure and temperature conditions. With a filtration rating ranging from 0.3 to 100 μm and customizable dimensions (OD up to 450 mm), CMI cups can be produced from premium materials such as 316L Stainless Steel, Titanium, and Hastelloy. These cups are fully cleanable, back-flushable, and can be integrated with metallic or non-metallic fittings for complete, ready-to-install units. They are the ideal choice for critical applications including catalyst retention, HPLC inlet protection, and gas-liquid sparging in the pharmaceutical, chemical, and food & beverage industries.
CMI manufactures porous metal cups using advanced powder sintering and porous media technologies for demanding industrial filtration and flow control applications.
These components are engineered with controlled pore structures to ensure reliable filtration performance, consistent flow distribution, and excellent chemical compatibility across a wide range of industrial environments.
Dimensions, wall thickness, pore size, and material selection can all be customized during production to meet specific process requirements.

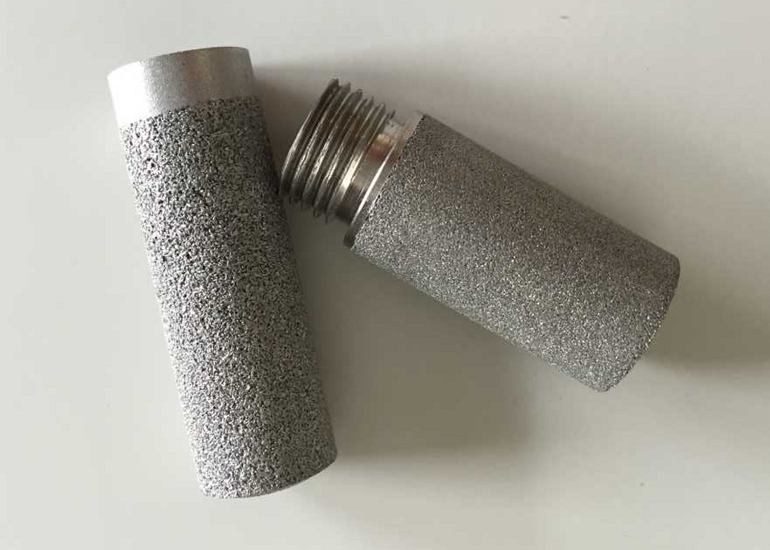

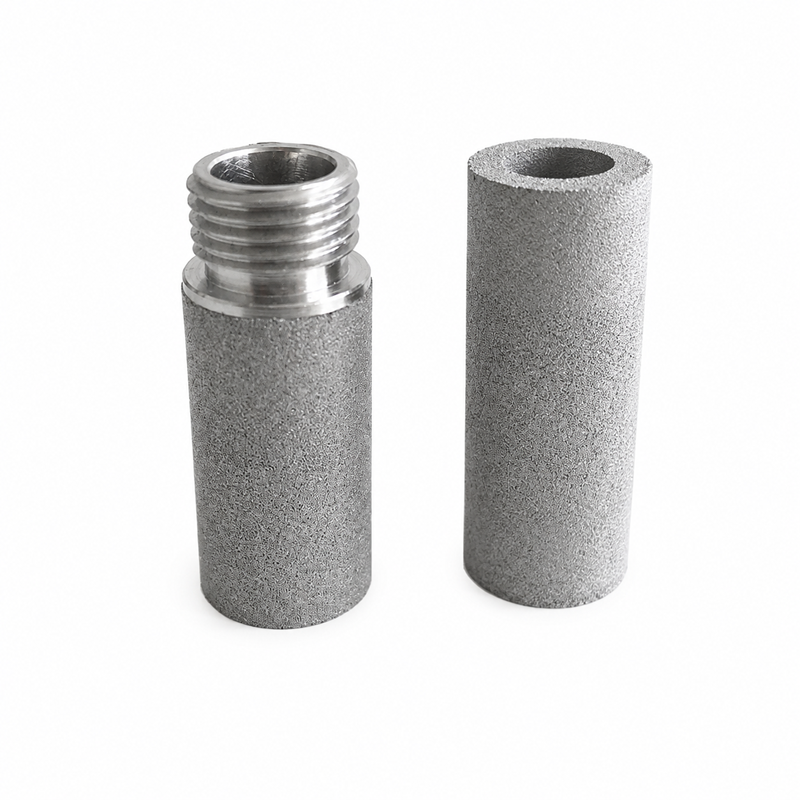

Porous metal cups can also be integrated with metallic or non-metallic fittings through welding or mechanical assembly, delivering complete ready-to-install filtration or flow control units.
Key Features

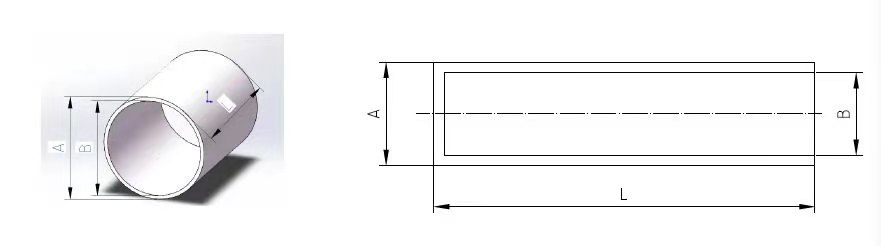

Technical Specifications
| Standard Length | Up to 1600 mm |
|---|---|
| Outside Diameter (OD) | From 4 mm up to 450 mm |
| Filtration Rating | 0.3 – 100 μm |
| Typical Tolerance | ±0.15 mm |
Custom sizes, geometries, materials, and tighter tolerances are available upon request.
Available Materials
| Stainless Steel | 316L, 304L, 310S, 904L |
|---|---|
| Titanium | Titanium and titanium alloys |
| Hastelloy | C-22, C-276, XB-2 |
| Inconel | 600, 625, 800 |
| Monel | 400 series |
| Nickel | Nickel and other specialty alloys |
Typical Applications
Chemical & Petrochemical
- Filtration of corrosive liquids and gases
- High-temperature gas and liquid processing
- Catalyst retention and support
- Fluidized bed reactor distribution
- Process steam filtration
- Cryogenic fluid handling
- Solvents, glycols, and polymer processing
Pharmaceutical
- Precision flow control components
- Liquid drug processing and delivery systems
- Gas distribution and oxygenation in bioreactors
- Cooling and process fluid filtration
Food & Beverage
- Activated carbon removal in decolorization
- Bleaching clay filtration
- Sterile or process steam filtration
Analytical & Instrumentation
- Chromatography solvent filtration
- HPLC inlet protection
- Inline micro-filtration for sensitive systems
Gas-Liquid Contacting & Sparging
- Carbonation systems
- Oxygenation and aeration
- Hydrogenation processes
- Oil dewatering and gas dispersion
Need Custom Porous Metal Cups?
Contact CMI for custom-engineered porous metal components, filtration assemblies, and industrial process solutions.
