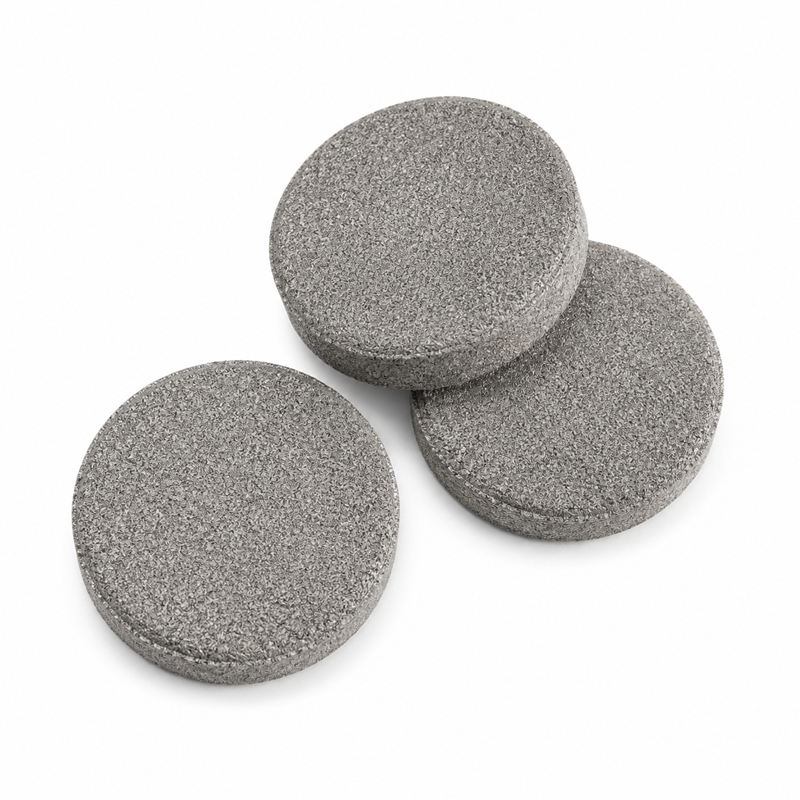

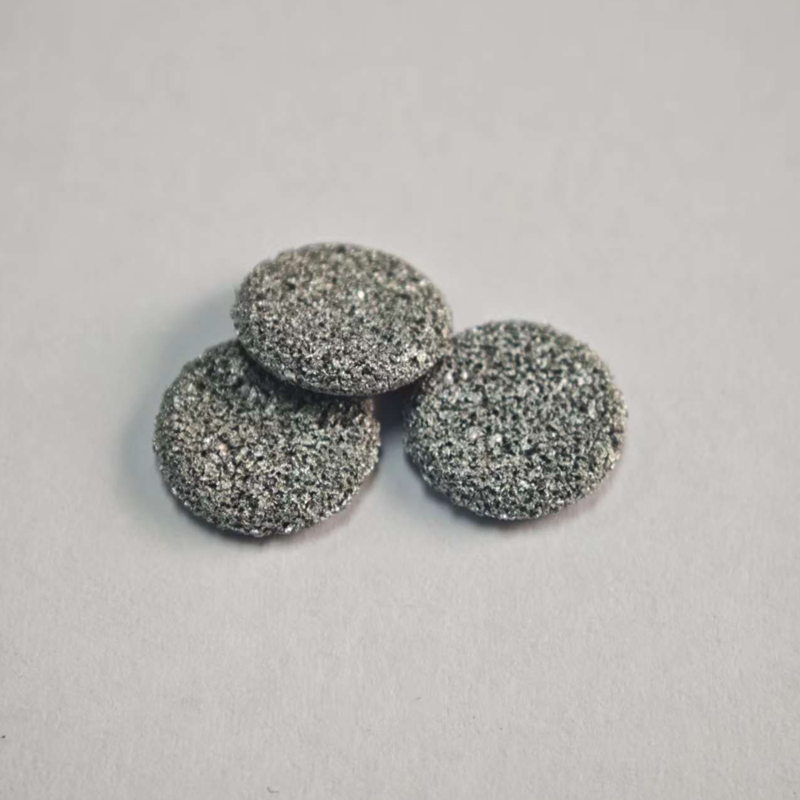

Porous Metal Discs
CMI Porous Metal Discs are high-performance components manufactured using advanced powder sintering technology to provide a controlled pore structure for reliable filtration and flow regulation. These discs offer high mechanical strength and excellent dimensional stability, making them ideal as filtration elements, support layers, or gas distribution components in harsh environments.
With a filtration rating from 0.3 to 100 μm and thicknesses as fine as 0.1 mm, CMI discs are fully customizable in terms of dimensions (OD up to 600 mm) and materials, including 316L Stainless Steel, Titanium, and Hastelloy. They are resistant to high temperatures, corrosion, and aggressive media, and are fully cleanable for a long operational life. These discs are widely used across industries for critical tasks such as HPLC inlet protection, catalyst retention, and oxygenation in bioreactors.
CMI manufactures porous metal discs using advanced powder sintering technology, providing a controlled pore structure for consistent filtration performance, flow regulation, and gas distribution applications.
Disc dimensions, thickness, pore size, and material selection can be tailored during the manufacturing process to meet specific process conditions, including pressure, temperature, and chemical compatibility requirements.
These discs are widely used as filtration elements, support layers, or gas distribution components in demanding industrial environments.
Key Features

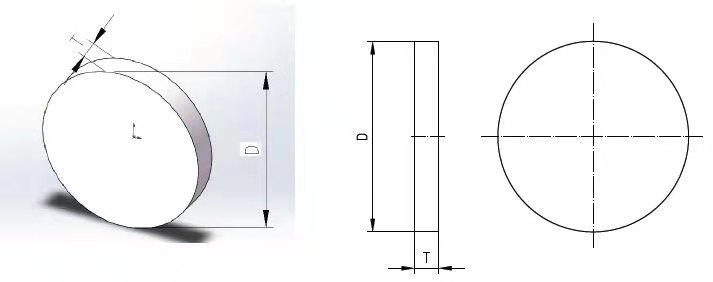

Technical Specifications
| Outside Diameter (OD) | Up to 600 mm |
|---|---|
| Thickness | 0.1 – 3 mm |
| Filtration Rating | 0.3 – 100 μm |
Custom sizes, geometries, materials, and tighter tolerances are available upon request.
Available Materials
| Stainless Steel | 316L, 304L, 310S, 904L |
|---|---|
| Titanium | Titanium and titanium alloys |
| Hastelloy | C-22, C-276, XB-2 |
| Inconel | 600, 625, 800 |
| Monel | Monel 400 |
| Nickel | Nickel and other specialty alloys |
Typical Applications
Chemical & Petrochemical
- Filtration of corrosive liquids and gases
- Catalyst retention and support layers
- Gas distribution in fluidized bed reactors
- High-temperature process streams
- Steam and cryogenic applications
- Solvents, glycols, and polymer processing
Pharmaceutical
- Precision flow control components
- Liquid processing and sterile filtration support
- Gas distribution in bioreactors
- Cooling and process fluid filtration
Food & Beverage
- Decolorization processes (carbon removal)
- Bleaching clay filtration
- Process and sterile steam filtration
Analytical & Instrumentation
- Chromatography solvent filtration
- HPLC inlet protection
- Inline micro-filtration for sensitive equipment
Gas-Liquid Contacting / Sparging
- Gas dispersion and sparging
- Oxygenation and aeration systems
- Hydrogenation processes
- Oil-water separation and degassing
Need Customized Porous Metal Discs?
CMI provides custom porous metal discs in various dimensions, alloys, pore structures, and connection designs for demanding industrial applications.
