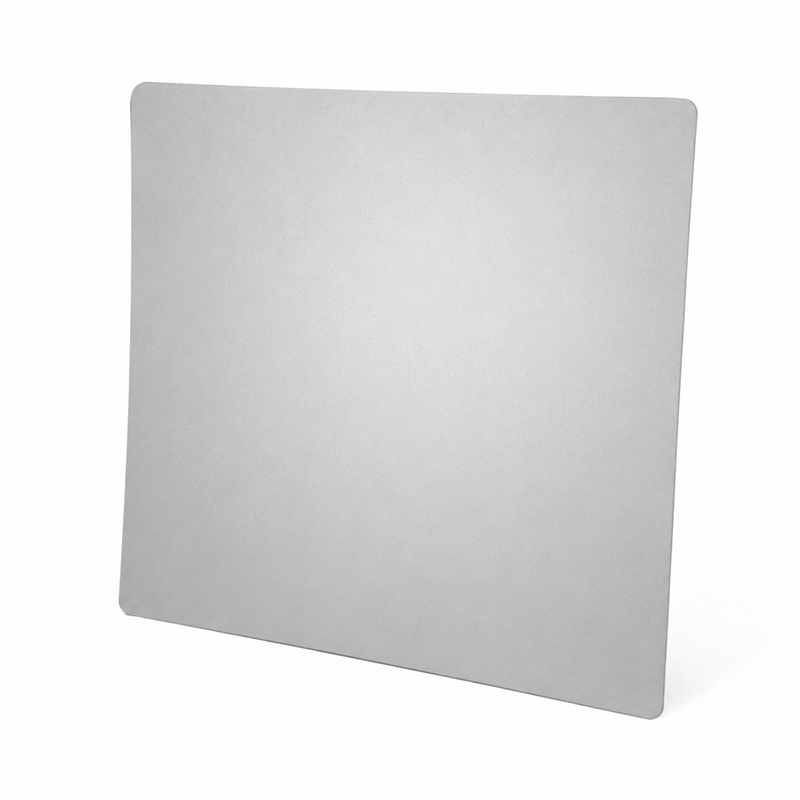

Porous Metal Sheets
CMI High-Performance Porous Metal Sheets (also known as sintered metal plates) are engineered for critical industrial environments where traditional plastic or textile media cannot survive. Utilizing advanced sintering technology, these sheets feature a high mechanical strength and precise pore distribution, ensuring consistent performance in both filtration and gas-liquid contacting.
Available in media grades from 0.3 μm to 100 μm and a variety of alloys—including SS316L, Titanium, Hastelloy, and Inconel—CMI sheets maintain exceptional dimensional stability under high pressure and thermal shock. These plates are fully customizable in thickness (0.1 mm – 3.0 mm) and dimensions to fit your “perfect-fit” requirements. With excellent back-flush and ultrasonic cleaning compatibility, they provide a long-life, reliable solution for catalyst retention, bioreactor sparging, and high-temperature steam filtration across the petrochemical, pharmaceutical, and food industries.
CMI porous metal sheets (also known as sintered metal plates) are engineered for critical environments where plastic or textile media fail.
By utilizing advanced sintering technology, we provide porous structures with high mechanical strength and precise pore distribution, ensuring consistent performance in both filtration and gas-liquid contacting applications.
These porous metal sheets are widely used in filtration, catalyst retention, sparging systems, and high-temperature process applications across chemical, pharmaceutical, food, and industrial sectors.
Technical Data & Specifications
| Material Options | SS316L, 304L, 310S, 904L, Titanium, Hastelloy (C-22/C-276), Inconel, Monel, Nickel |
|---|---|
| Media Grade | 0.3 μm to 100 μm |
| Standard Thickness | 0.1 mm – 3.0 mm (Customizable) |

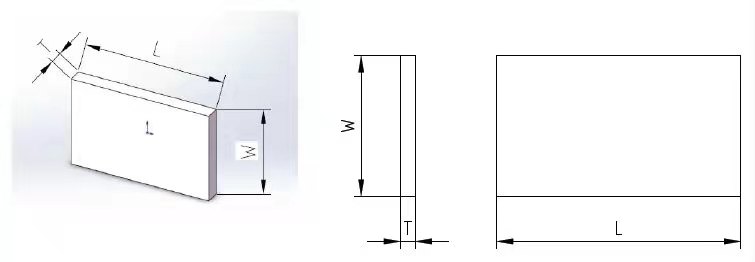

| Dimensions | Up to 420 mm OD; custom lengths and widths available |
| Cleaning | Excellent back-flush and ultrasonic cleaning compatibility |
Engineering Solutions Across Industries
Petrochemical & Chemical
- Catalyst retention systems
- Cryogenic fluid processing
- Corrosive gas filtration
- High-temperature process filtration
Pharmaceutical
- High-purity gas sparging for bioreactors
- Flow control in medical devices
- Precision sterile filtration support
Food & Beverage
- Decolorization via carbon removal
- High-temperature process steam filtration
- Liquid clarification applications
General Industry
- HPLC inlet protection
- Solvent filtration
- Aeration and sparging systems
Why CMI is Your Trusted Partner
Customization is Our Standard
Whether it’s a specific alloy or a unique geometry, we tailor production to your exacting requirements.
Built for Extremes
Our porous sheets maintain dimensional stability under high pressure and thermal shock conditions.
Global Technical Support
With over 20 years of industrial filtration expertise, CMI helps optimize flow rates and service life.
Ready to Optimize Your Process?
Don’t settle for “off-the-shelf” when you can have “perfect-fit.” Contact our engineering team today for a technical consultation or a custom quote.
📩 Email us: sales@cmifiltration.com
